PathWave Model Builder (MBP) 2020 Update 1.0 Product Release
Highlights
PathWave Model Builder 2020 Update 1.0 includes the following new features and major enhancements:
- Support for AgeMOS simulation and model tuning
- A warning message will pop up when loading the data which page name is not pre-defined in analysis.xml
Description
Introducing PathWave Model Builder 2020 Update 1.0
PathWave Model Builder 2020 Update 1.0 adds the support for AgeMOS simulation and model tuning by invoking native Spectre.
- Supports AgeMOS model simulation by invoking external Spectre.
- Supports compact model, subckt model or binning model as a core model.
- Supports HCI, BTI or composed HCI and BTI with core model.
- Provides default example project with pre-defined IMV plots: Vth/Idsat vs. time, delta Vth/Idsat vs. time, etc.
- Supports extend simulation for instance parameters and time.

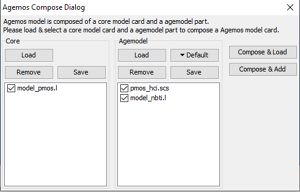

Figure 1. Compose and Load Model.
Figure 2. Degradation of Idlin due to HCI and BTI.
- Displays a warning message if data loaded does not match the default analysis.
