Characterizing 5G and mmWave Materials

Material performance needed for 5G and mmW automotive radar applications

Signal losses are a major concern for the 5G ecosystem, particularly in the millimeter-wave freqency band. Important characteristics such as low dielectric constant (Dk) and low dissipation factor (Df) are required to enable a lower latency signal to avoid signal loss at high speed.

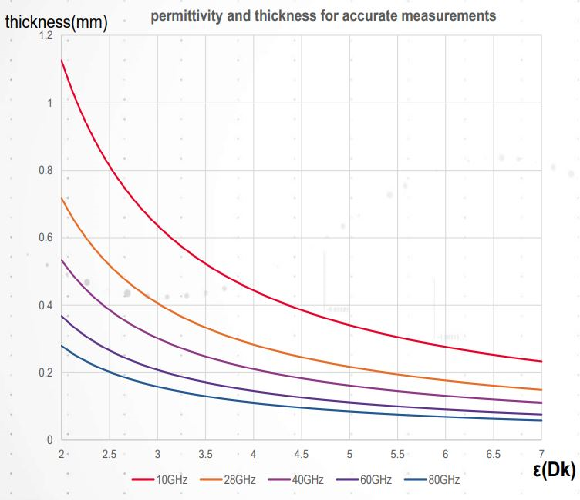

For a typical low loss (0.0001<Df <0.01 typical) thin film material, we recommend using the split cylinder cavity resonator (SCCR) fixture, which simply place the material under test in between the fixture holders, then tighten it with the lever on the side. Users face challenges to use the right sample thickness corresponds to the different frequency points, to obtain the maximum accuracy.

Application Note

Low-loss Materials Research in 5G Communications

N1501A

Characterize from low frequency to mmWave range

Measure confidently with broad range of fixtures

Material Measurement Fixture up to 80GHz

Determine the right methods for each unique material

Tap Keysight experts experience and insights to customize your solutions

Material Measurement Fixture up to 80GHz

Automate complex permittivity and permeability measurement

Configure dielectrics measurement setups through software

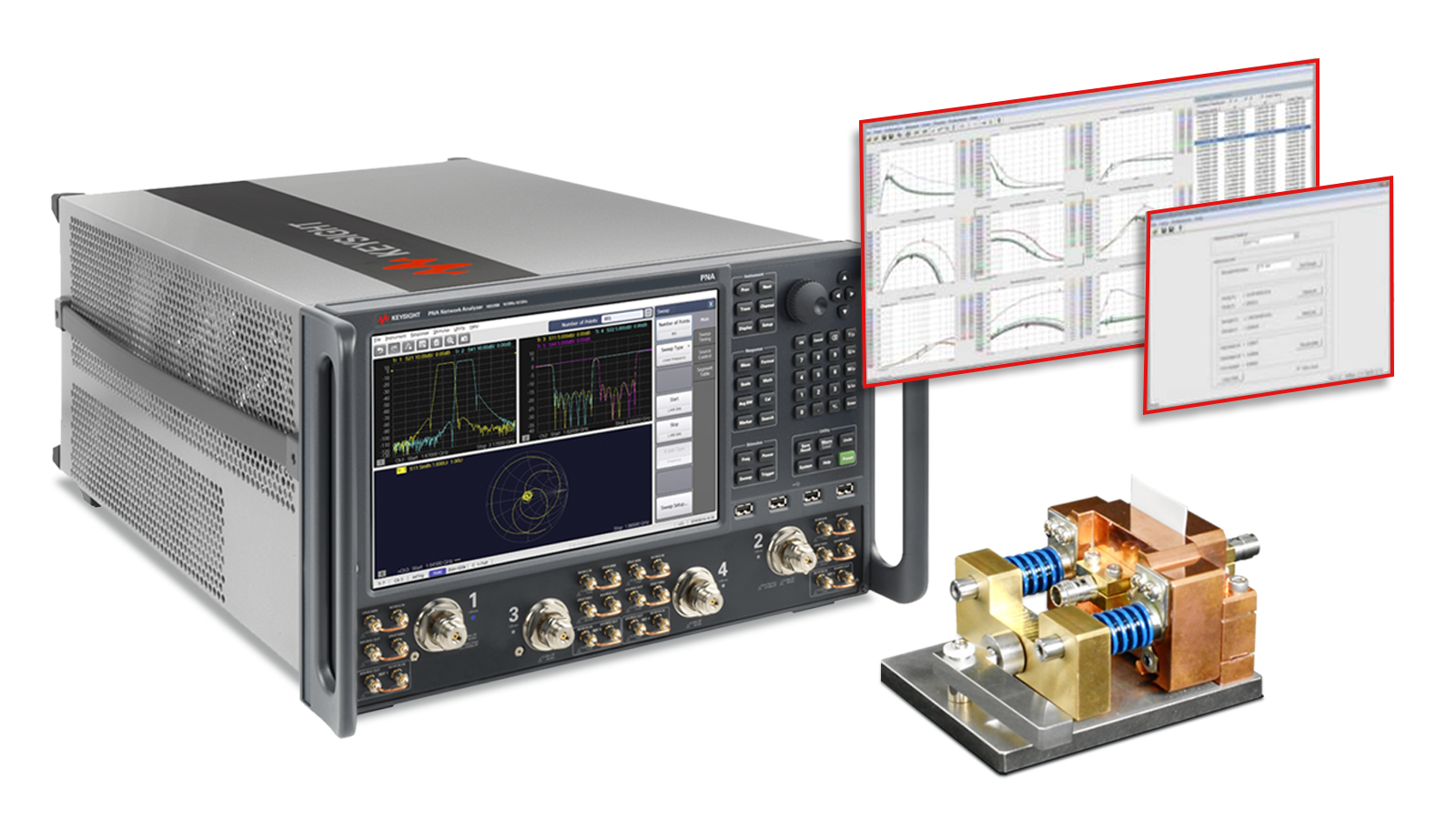

Keysight mmWave Material Measurement Solutions

Our dedicated material measurement software and fixtures, and industry-leading performance network analyzers enable accurate and repeatable low-loss materials measurements within the millimeter-wave frequency range.

mmWave Material Measurement Solutions and Demo

Understand the challenge of dielectric parameter measurements and various mmWave material measurement solutions.
